power with precision.

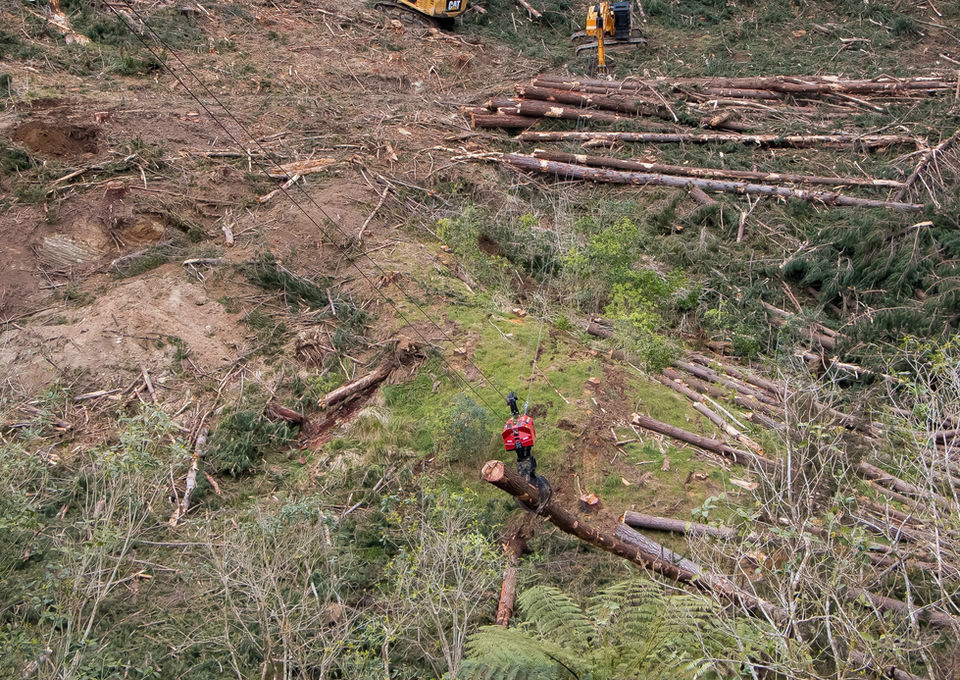

The Hawkeye carriage is a lightweight, wirelessly controlled hydraulic grapple carriage, fitted with multiple cameras providing precise control and superior perspective of the work area.



Multiple rope connection points make the system compatible with any yarding system and multiple rigging configurations.

1/3

Cameras

3 x HD Industrial Digital cameras offers unrivaled perspective of the work area.

Versatile Rope Connection Points

Offers compatibility with any yarding system and multiple rigging configurations.

LED

Integral LED lighting system allows safe and efficient operation in low light situations.

Air-Cooled Kohler Twin Cylinder Engine

360° Grapple Rotation

3 Grapple Design Options

Light,

but

durable

Manufactured by utilizing high tensile materials together with induction hardened components.



Powered by technology

Equipped with innovative wireless system for viewing cameras and controlling the grapple .

Powerful,

EFFICIENT.

Equipped with an air-cooled Kohler 14kW Twin Cylinder engine, coupled with an intelligently controlled dual stage pump system optimizes power, speed and fuel efficiency.

Control system

he dash.jpg

seamless

control.

Our user-friendly interface allows remote starting the carriage and wireless control of other carriage functions while displaying real-time video from the onboard cameras and data from the sensors installed on the carriage.

HAWKEYE MK3_CARRIAGE RENDERING 01.png

tECH

specs

Weight Including Grapple ( A / B / C )

1710 / 1870 / 2050 kg

Grapple

EMS High Tensile Grapple Tines

Engine Configuration

2 Cylinder Diesel

Engine

Power

18.8 HP (14kW)

Lubrication

Accu-sump Engine Protection

Components

Induction Hardened

Rotator

360°

Rotation

Battery

12V with Integral Charging

Cameras

3 x Industrial HD Digital Cameras

Hydraulic

Radial/Gear Dual Stage Pump

Grapple Type A.gif

Grapple

tYpe a

Opening (A)

1752 mm (68.9")

Closing (B)

135 mm (5.3")

Close Height (C)

1319 mm (51.9")

Open Height (D)

1816 mm (71.5")

Jaw Offset (E)

108 mm (4.25")

Jaw Width (F)

200 mm (7.9")

Grapple

tYpe b

Grapple Type B.gif

Opening (A)

1727 mm (68")

Closing (B)

58 mm (2.3")

Open Height (C)

1620 mm (63.7")

Close Height (D)

1922 mm (75.6")

Centre Jaw (E)

275 mm (10.8")

Jaw Width (F)

462 mm (18.2")

Grapple

tYpe c

Grapple Type C.gif

Opening (A)

2545 mm (100")

Closing (B)

110 mm (4.3")

Close Height (C)

1386 mm (54.5")

Open Height (D)

2164 mm (85.2")

Jaw Offset (E)

156 mm (6.1")

Jaw Width (F)

298 mm (11.7")
