DESIGNED

FOR

SAFETY.

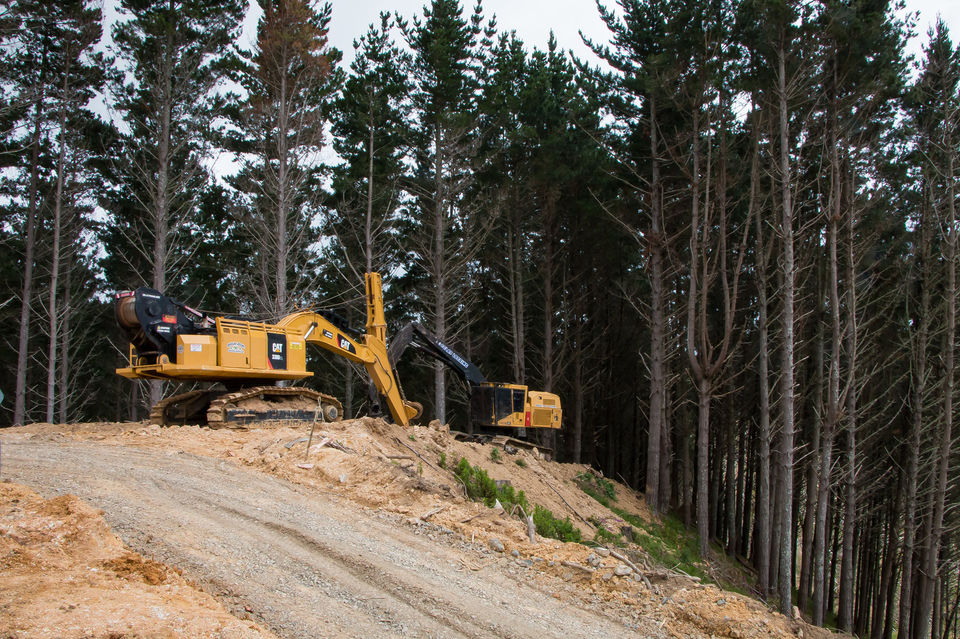

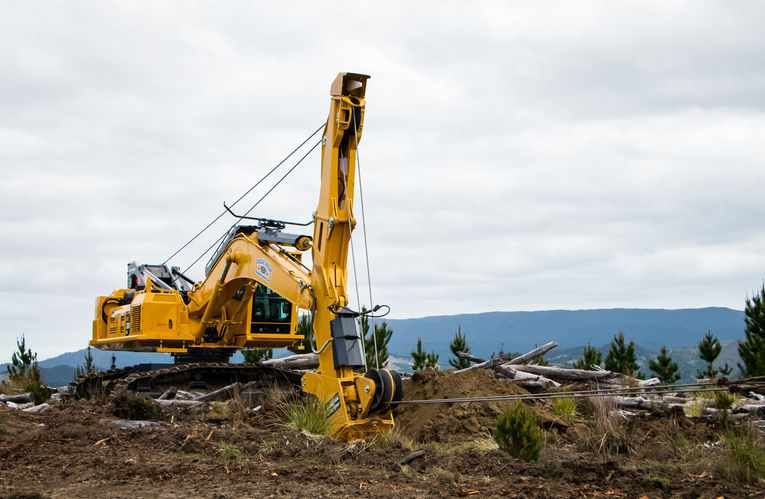

The Tractionline is a twin line traction winch assist system designed for steep slope harvesting.



It is designed and manufactured to meet the stringent AS1418-1 safety standard which demands a safety factor of 5:1 on all components.

The winches are wirelessly controlled by the machine that is being tethered.

TL-V3 MAIN ASSY_render_2-nobg.png

Dual Winch

Offers ultimate safety redundancy.

Low-rope

sensors

Alerts operators when low on rope.

Modular Design

Can be installed on any, >30T excavators.

Autonomous Tension Control

Adjustable via the control system.


INTELLIGENT CONTROL.

Autonomous line tension control allows operators to focus on production.

start

SAFE,

STABLE.

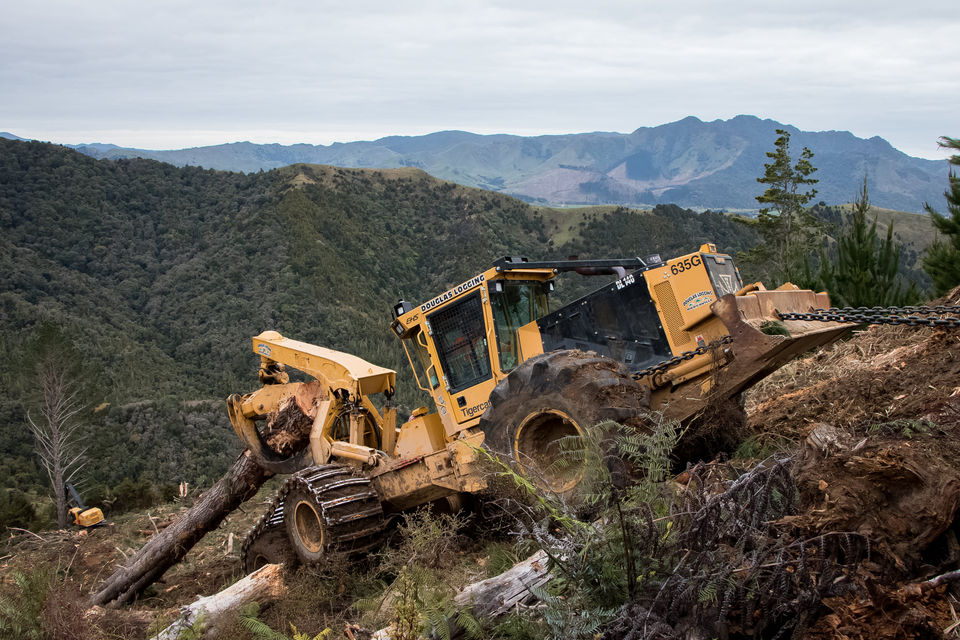

Facilitates stability for felling, shoveling and skidder extraction on steep slopes and minimizes ground disturbance.


REAL-TIME MONITORING.

Multiple safety alarms and camera livestream of winch machine stability for maximum safety.

FUEL

EFFICIENT.

Low fuel burn with the high capacity drive system and our intelligent control system.

Control system


information

Driven.

Our user-friendly interface offers real-time data from multiple sensors installed on the winch set, displays everything you need to know about the system wirelessly.

Integrated

Maps.

Our software's integrated mapping function allows operators to load topographical pdf maps, locate your machine on the map and capable of logging your machine's locations using the built-in GPS.


tECH

specs

TL-V3 MAIN ASSY_render_2-noshadow.png

Weight Including Ropes

7050 kg / 15,542 lbs

Chain Spec

Grade 80 Short Link 26mm

Rope Capacity

Per Drum

500 m / 1640 ft

Minimum Base Machine Weight

28 tons / 61,729 lbs

Max Line Pull

Per Drum

10,500 kgf / 23,148 lbf

Safety Factor

5:1

Rope Spec

6x25 Power - Pack IWRC 7/8"

Total Line Pull

21,000 kgf / 46,297 lbf


Multi camera system.

Our system is equipped with front and rear cameras allowing operators to monitor the machine stability, bucket engagement and the condition of the winches wirelessly.
